• Low Cost
  • Assured Service Back - Up
  • Indigenous
Introduction/Application

Oxygen in flue gas analysis is the simplest and least expensive basis for combusion control and can return as much as 90% potential fuel saving provided a rugged accurate oxygen sensor is employed. The importance of minimising excess air is that for each 1% reduction of oxygen in the stack can give a 2% fuel saving.

The Model ACE 2000 is an " in-situ " on-line oxygen analyser package characterised by its robust construction & designed to measure Oxygen concentration in the flue gas from the combustion processes.

Typical application include industrial power and process boilers, refinery process heaters, oxygen enrichment systems, wind boxes, incinerators and air pre-heater leakage. It can be used for moisture analysis.

Description

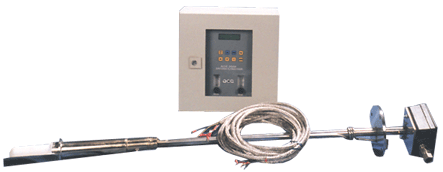

Each analyser includes Oxygen sensing probe, protective support shield, 6 metre cable, electronics package, with reference air set and calibration gas rotameter, adaptor plate and accessories.

The heart of the systems is the Zirconia Sensor, which when maintained at elevated temperatures gives an output (based on Nernst equation) which is a function of the gas constant, the absolute temperature, Faraday's constant, the natural logarithm of the ratio of the partial pressure of oxygen on the two sides of the cell.

This means if the temperature is held. Constant and air ( 20.9% oxygen ) is used as reference air, the output becomes the inverse logarithm of the partial pressure of oxygen in the measured gas.

emf = cell output, Millivolts
R = gas constant
F = Faraday's constant

Ps (02) = Partial pressure of sample gas
Pr (20.9) = Partial pressure of reference air
(Ambient Oxygen)
C = Cell constant
T = Absolute Temperature

Oxygen % v/s output (mv) Relationship

Output (mv)
The cell is encomposed by a heat shield assembly which allows the sample gas to diffuse through the ceramic filter and also conserve and maintain the requisite temperature. A v-deflector below the filter prevents particulate matter from the flue gas to directly impinge on the filter and retards clogging on the side.

The hollow of the zirconia cell houses the inner probe assembly which consists of a heater, a thermo-couple, a platinum conductor. The heater and thermocouple form the part of the temperature control circuit which maintains a temperature of 843°C (34.1mv) in the vicinity of the cell. The heated temperature is programmable from 750°C to 843°C. The platinum conductor carries the positive signal from the cell to the terminal strips. The negative of the cell is body ground. In case of the heaterless probe, the process temperature itself activates the Zirconia Cell bits range operating temperature 650°C to 1600°C.

To meet the varying stack diameters probes are available in sizes ranging from 18" , 3' , 6' and 9'. The probes are bolted and mounted within a support shield which gives physical protection to the probe.

The Micro - Processor based Electronics is housed in a rugged IP 65 (weather proof) enclosure. The electronics can be mounted close to the probe or in the Control Room with suitable cabling. The electronics is capable of giving

  • 4-20 mA isolated output or
  • 0-20 mA isolated output for 0-10% O2 or 0-21% O2
Features
  • Sensor used is a solid Zirconia Oxide electroyte with a high speed of response and is ideal for closed loop control. The sensor is ruggedly built and does not experience mechanical and thermal shock like other cells in the market, it is also easily replaceable.
  • The sensor is suitable for process temperatures upto 760°C and the sensitivity of the cell increases logaritmically when oxygen decreases. These features make the sensor suitable for any fuel and also useful for measuring low oxygen levels.
  • Electrodes are self protected in the presence of sulphur or reducing atmopheres. This provid long life for sensing element even in the presence of sulphur and reducing atmospheres.
  • In the absence of a sampling systems, the maintenance downtime is reduced drastically. The rapid, accurate and reliable measurement paves the way for significant fuel savings and enhanced safety.
  • Oxygen measurement is on a 'wet' basis and takes into account moisture. This gives the actual free oxygen available in the gas.
  • The ( Calibration facility not available for the heaterless probe ) probe used is the direct insertion 'in-situ' type and also facilitates on-site calibration.
  • The output from the analyser is suitable for use with indicators, recorders, controllers and data loggers etc.
Optional Features
  1. By-pass version of model ACE 2000 suitable for temperatures upto 1000°C.
  2. Special probe shields and materials of construction for harsh, erosive or corrosive atmospheres.
  3. Auto-purging facility for filter on request.
  4. Enclosure for hazardous area on request.
Technical Specification

Range of measurement 0-10%
0-21%
Sensing Element
Temperature Operating
843°C
(Prgrammable 750°C to 843°C)
Thermocouple mV @ 843°C 34.1 mV thermocouple output
Thermocouple
Resistance (Cold)
1.5 to 3.5 ohms
Expected life of cell 4 to 5 years
Oxygen indication accuracy 0.1% O2 or ± 1% of reading (for heated probe)
0.1% O2 or ± 3% of reading (for heaterless probe)
Cell speed of response 1 millisecond
System speed of response less than 3 seconds
Resolution sensitivity 0.01% O2
Process temperature 10 to 760°C Max (for heated probe)
650°C to 1600°C (for heater less probe)
Ambient Temperature 0°C to 50°C
Heater Resistance (cold) 35 to 42 ohms
Power supply 115v AC ± 10%
230 V AC Optional
Calibration Gas Flow (In-built) 2 LPM
Reference air flow (In-built) 1 LPM
Probe length 18 inches
3 feet, 6 feet
or 9 feet depending on duct dimension
Calibration Gas
Specifications
0.4%, 2% and 8%
O2 Balance N2
Isolated Analogue
Output
4-20 mA(Linear)
0-20 mA (Linear)

Ordering Information

(A) BASIS PROBE 2000-0A
ZIRCONIA SENSOR 2000-0 AA

(B) INNER PROBE ASSEMBLY 2000-0AB
Heater ( add suffix1.5, 3,6,9 to indicate size) 2000-0AB1
Ceramic Tube 1.5 (add suffix 1.5, 3) 2000-0AB2
Plantinum Conductor (add suffix1.5, 3,6,9 to indicate size)
2000-0AB3
Heater Support 2000-0AB4
Hardware ( clamps, bush, spring etc. ) 2000-0AB5
(C)HEAT SHIELD ASSEMBLY 2000-0AC
Metal assembly 2000-0AC1
Ceramic filter with cement 2000-0AC2
Sintered Metal Filter with Cement 2000-0AC3

(D) MOUNTING HARDWAR 2000-0B
Support Shield Assembly (add suffix 1.5,3,6,9) 2000-0B1
Adapter Plate 2000-0B2
O Ring 2000-0B3
Gasket 2000-0B4


(E) Micro Processor Electronics 2000-0C
Mother Moard (Heated Probe) 2000-0C1
Display Board 2000-0C2
Transformer (Option for 230 VAC) 2000-0C3
Calibration Gas Rotameter 2000-0C4
Reference Air Rotameter 2000-0C5
Reference Air Pump 2000-0C6
Reference Air Filter 2000-0C7
