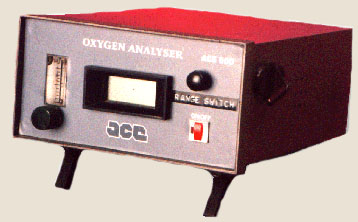

Application Gas purity Certification. Air Seperators & Liquification. Process Monitoring of Gaseous Monomers. Heat Treatment & Anealing. Inert Gas Welding of Exotic Metals       Features Light, Rugged Construction, Table top / Panel Mounted Analysers. Available in PPM and Percentage. Hi-Lo alaram setting over complete range with relay activation. 4 to 20 mA O/P signal for recorder. Proven reliablity, high sensitivity & accuracy. Long life maintainence free sensor. Easy to Calibrate Available for O2 (%), (PPM), CO and H2S Technical Specifications Parameters Range Accuracy Resolution O2 0-25% +/- 2% of Reading 0.1% O2 0-100% +/- 2% of Reading 0.1% O2 0-1999 ppm +/- 2% of Reading 1 ppm CO 0-199 ppm +/- 2% of Reading 1 ppm H2S 0-199 ppm +/- 2% of Reading 1 ppm CO2 0-100% +/- 1% of Reading 0.1% Power Inbuilt Charger-cum-Power unit for 230V / 50 Hz operation Internal Ni-Cad Batteries 8.4 V / O.5 AH capacity / charging time 16 hours. (Optional) Display 3 1/2 Digit Liquid Crystal Display Sampling Mode Flow meter 0 to 1 LPM Alarms Audio-visual, High & Low Alarm setting over complete range. Sensor Mounting Internally / Surface / Remote. Life 1 Year for O2 PPM with continuous purging Response time : 90% within 10 Sec. External Controls Zero adjustment Potentiometer Span adjustment Potentiometer High Alarm preset Potentiometer Low Alarm preset Potentiometer Optional Accessories 4 to 20 mA for Recorder output with two relays- High & Low. Alright, Quick Release, Coupling for low ppm measurement. Physical Dimension 220mm x 190mm x 95mm. Weight less than 1 Kg.
