- Fully Indigenous
- Sensor With
3 Year Warranty
- VLSI Technology
- Customised
Sensor Technology
- No Charger
|
Parameters
|
Range
|
Accuracy
|
Resolution
|
|
O2
|
0
TO 21%
|
±2%
of Reading
|
0.1%
|
|
CO
|
0
TO 4000PPM
|
±
2% of Reading
|
1
ppm
|
|
Type
CR-AL / RTD
|
0TO
600*C
|
±1%
of Reading for K type ±
0.75% of Reading for RTD ±
2% of Reading
|
1°C
|
|
CO2
Derived
|
0
TO 21%
|
±
2% of Reading
|
0.1%
|
|
Combustion
Efficiency(Derived)
|
0
TO 100%
|
1%
between
70% TO 95%
|
0.1%
|
- 9 V Alkaline cells. Easy to replace, Maintenance free, Charger option
also available
- Battery can take 2 Hrs continuous reading

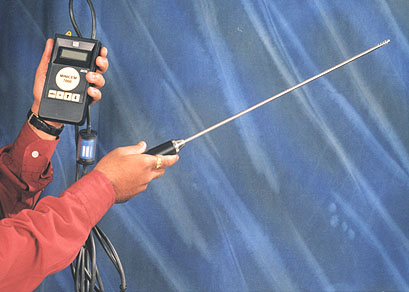

- Standard probe suitable for 0 TO 600 °C temperature / 350 mm rigid
section and 2 mtr. neoprene tubing
- 8 Character dot matrix LCD Scrolling display
- Membrane Polycarbonate Keyboard with tactile keys
- Can suck stack gas up to 400 mm wc
- Provision for automatic and manual calibration (with known gas)
- It comes with RS 232, interface cable software floppy. It can Store
250 sets of readings.
- Instrument can operate on fuels ranging from Kerosene, LCD, HSD,
LSHS, F.O, NATURAL GAS, COAL etc. Customer can feed the program for
non-standard fuel codes.
- Calorific value is based on locally available fuels.
- CO2 Excess Air and combustion efficiency reading are calculated as
per BS 845
- User friendly interface with the operator by means of elaborate message.
- Pocket size, Lightweight easy to carry
- No charger required. Works on 9V Alkaline Cell
- Low cost & fully indigenous
- Textiles
- Pharmaceuticals
- Energy Audits & Environmental Consultants
- Refineries & Petrochemicals
- Breweries
- Chemicals
|
|
