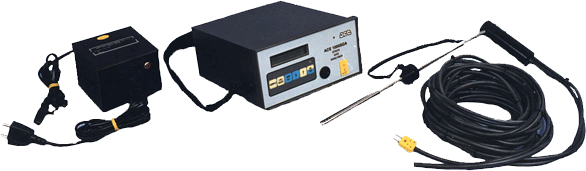

What is Ace 1000

• It is a hand analyser with shoulder strap provision for carrying to odd sampling points.
• Interface with operator through soft touch membrane polycarbonate keyboard and 16 character Dot Matrix L.C.D.
• Inbuilt diaphragm pump to suck sample gas. Reading can be stored and interfaced with computer through Rs. 232 output.

Features

• Instrument can operate on fuels ranging from Kerosene, LDO, HSD, LSHS, F.O., Natural Gas, Coal etc., Customer can programme for non standard fuel values.
• Calorific valves are based on locally available fuels.
• Instrument can store upto 250 records and can be interfaced to computer for printout.
• Rigid probe with flexible section gives easy accessability during sampling at odd locations.
• Extended probe upto 1.5 Mtr. available for higher temperature upto 1200°C.
• CO₂, Excess Air , Combustion efficiency readings are calculated and displayed as per B.S.845.
• Unit has facility to give all stack gases other than O₂, CO, SO₂ and NO_X.
• User friendly interface with operator by means of elaborate messages.

Power

• External charger-cum-power unit for 230 V / 50 Hz Operation.
• Internal Ni-cad battery 7.2 / 0.5 AH
• " Auto Cut Off " for battery after required charging.
• Full charged battery can give upto 75 test of 4 min each.

Calibration

Provisions for automatic and manual calibration ( with known gas ) for various gases and temperature channel.

Parameters

Measures O₂ ( 0 to 21% ), CO₂ ( 0 to 21% ), Combustion efficiency ( 0 to 100 % ) stack Temperature upto 1200°C , Ambient Temperature upto 60°C, Excess Air ( 0 to 850% )

Physical Specifications

• Portable unit 220mm x 190mm x 95mm
• Probe length 500mm SS 316 Steel or Probe length 1000mm Incoloy 625 material.
• Carrying case with custom-built foam.

Optional Gases

Note: Wecan give other gases as per request with specifications.

Ace 1000 For

• Textiles
• Cement Plants
• Pharmaceuticals
• Process Industries
• Energy Audits & Enviornment Constultants
• Petrochemicals
• Refineries
• Breweries
